Crusher Parts & Conveyor Components

Explore our manufacturing and supply range for mining, quarrying and bulk handling. Choose a component below to review its details, or send your part reference to our Melbourne office for an item-specific quotation.

Cone parts Cone crusher mantle

Cone crushers

Cone Crusher Mantle & Bowl Liner

Aftermarket manganese mantles and matching bowl liners or concaves for selected Metso Nordberg HP, GP and MP, and Sandvik CH and CS cone crushers. Chamber profile and material grade are confirmed against the supplied model, part number and operating duty.

Metso HP200–HP800 Sandvik CH420–CH870 Mn18Cr2 / Mn22Cr2
Explore Mantles
Enquire about this part →
Bronze bush

Cone crushers

Cone Crusher Bronze Components

Eccentric bushes, head bushes, socket liners, countershaft bushes, thrust washers and step plates for selected cone crusher models. Alloy, dimensions and running clearances are confirmed from part numbers, drawings or samples before manufacture.

Eccentric bushes Socket liners High-tin bronze
Explore Bronze Bushes
Enquire about this part →

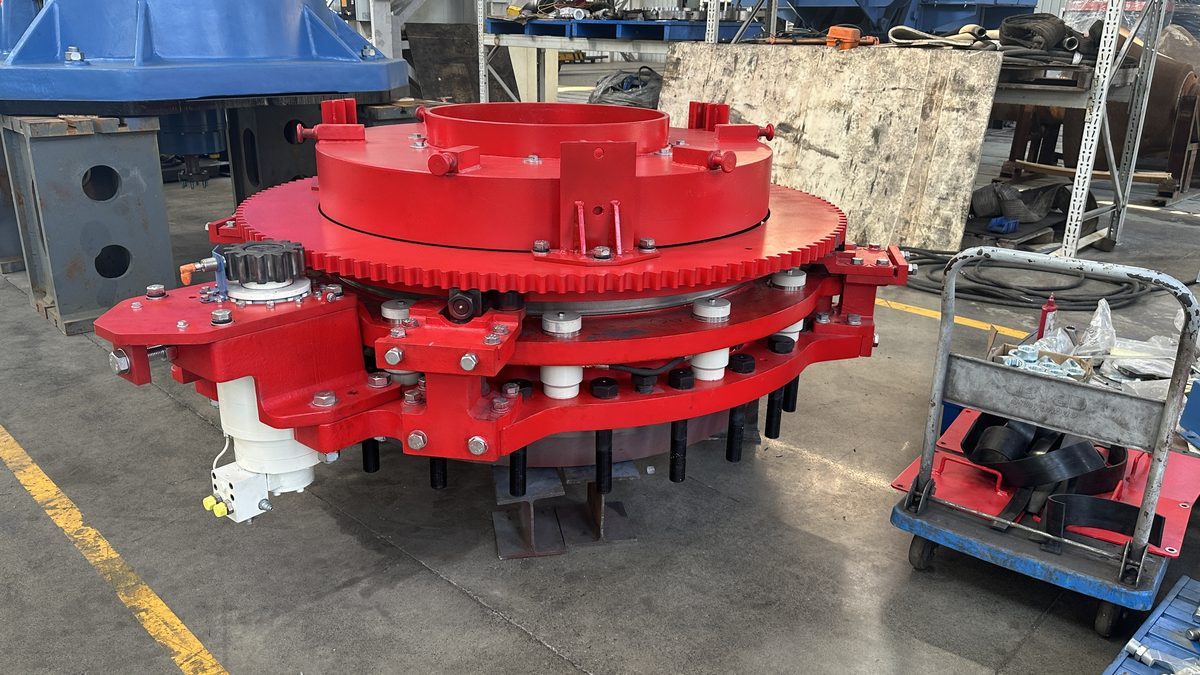

Crusher ring assembly

Cone crushers

Cone Crusher Mechanical Spares

Mechanical spares for selected crusher designs, including shafts, eccentric and drive components, and ring assemblies. Confirm the part number and required assembly scope.

Main shafts Bevel gear sets Torch rings
Explore Head & Main Shaft Assemblies
Enquire about this part →
Jaw parts Toothed jaw plates

Jaw crushers

Jaw Plates — Fixed and Swing

Fixed and swing jaw plates in selected tooth profiles for Metso C-Series and Sandvik CJ / QJ jaw crushers. Fitment is checked against the crusher model, part number and fixing dimensions supplied.

Selected Metso C-Series Sandvik CJ411 / CJ612 Mn18Cr2 / Mn22Cr2
Explore Fixed & Swing Jaw Plates
Enquire about this part →
Item-specific photograph available with the quotation

Jaw crushers

Jaw Stock & Pitman Assemblies

Jaw stock and pitman assemblies, flywheels and bearing housings for major C-Series and CJ models, supplied either as bare castings or fully machined.

Jaw stock Pitman assembly Flywheels
Explore Pitman, Shaft & Tension Components
Enquire about this part →
Cone crusher mantle

Wear materials

Manganese Wear Liners — Mn13Cr2 / Mn18Cr2 / Mn22Cr2

Nominal manganese alloy families for application-specific review. Confirm chemistry, heat treatment and acceptance requirements for the quoted component.

Mn13Cr2 Mn18Cr2 Mn22Cr2
Compare manganese grades
Enquire about this part →
Premium Cone liner with visible reinforcement pattern

Wear materials

TiC Composite Wear Liners

TiC reinforcement options can be reviewed for the specified liner and duty. Confirm the matrix, insert specification and evidence of performance before order. A visible reinforcement pattern alone does not establish its chemistry.

Titanium carbide Duty-specific assessment Extreme abrasion
Review composite materials
Enquire about this part →
H-type alloy cleaner

Conveyor & roller

Belt Cleaners — Primary & Secondary

H-type, P-type and GH alloy cleaners, roller-brush, reversible, counterweight double-head and combined water cleaning systems. Primary and secondary configurations selected for belt speed, belt width, splice type, material and moisture conditions.

H / P / GH alloy Reversible units Polyurethane blades
Explore belt cleaners
Enquire about this part →

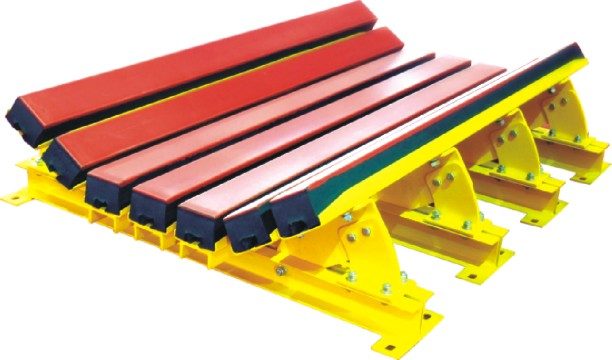

Impact bed

Conveyor & roller

Impact Beds & Impact Bars

Impact bars support the belt through the loading zone. Bar layout, frame rating and access for replacement must be selected for the conveyor; slide-out or lowering sections depend on the quoted design.

Continuous support Modular bars Certification by agreement
Explore impact support
Enquire about this part →

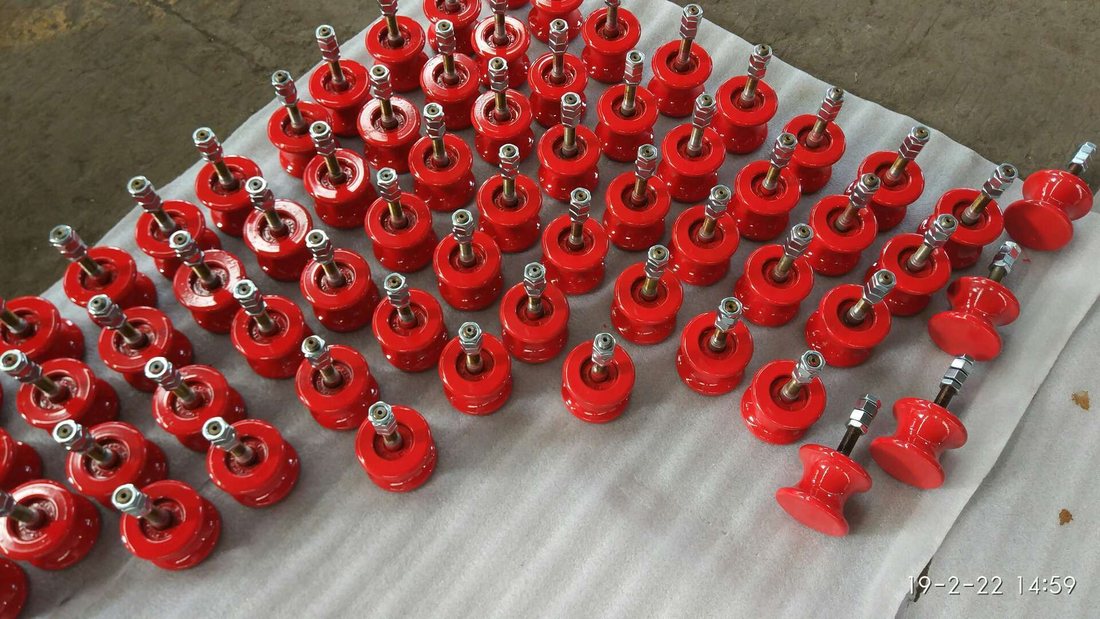

Guide roller components

Conveyor & roller

Rollers & Idler Sets

Carrying, return, impact and training rollers, plus self-aligning idler assemblies selected to suit belt width, trough angle, load and operating environment.

8 idler families Dimensions to drawing Seal options reviewed
Explore rollers and idlers
Enquire about this part →

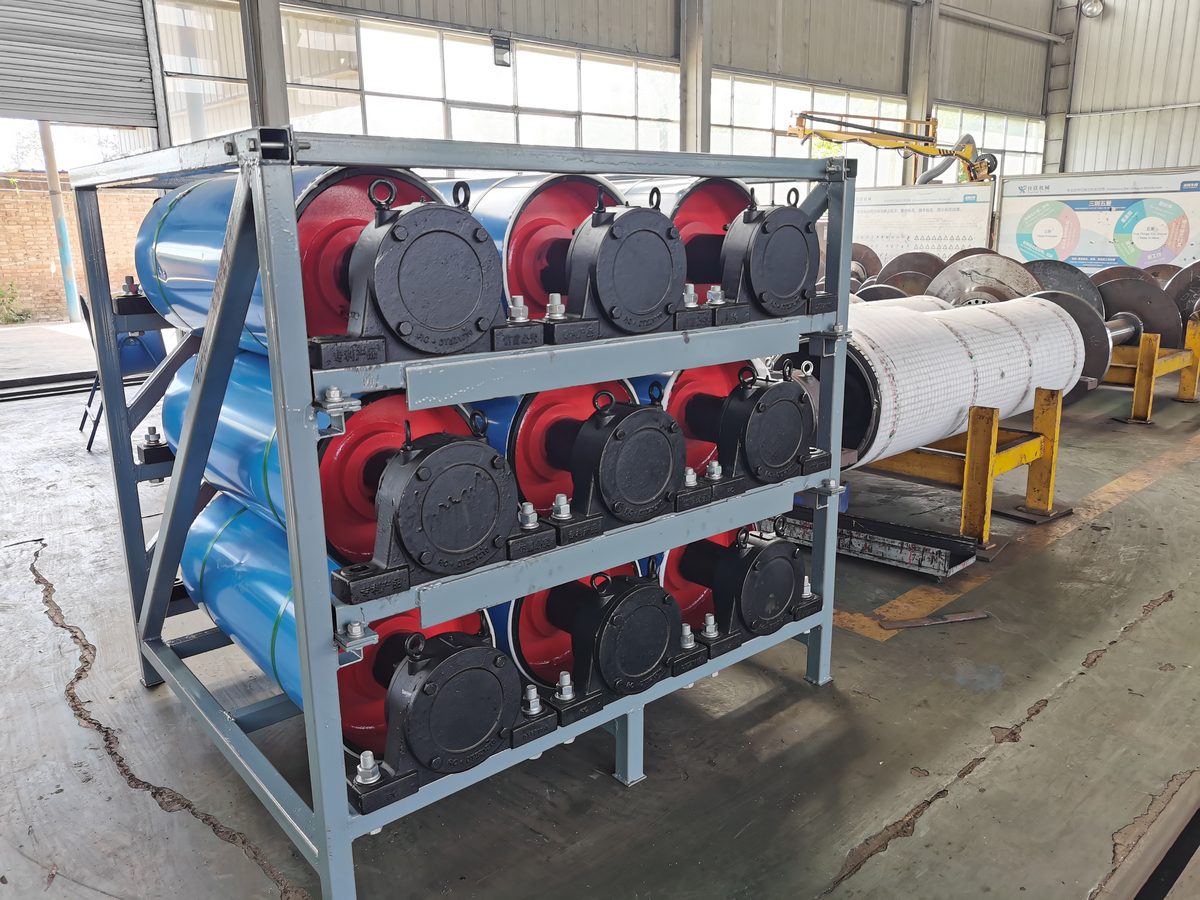

Pulley assemblies in storage

Conveyor & roller

Pulleys — Lagged and Refurbished

Drive, tail, bend, snub and take-up pulleys with rubber or ceramic lagging. Existing drawings and key dimensions can be reviewed for replacement or refurbishment enquiries.

Rubber / ceramic lagging Dimensions confirmed Refurbishment
Explore pulley components
Enquire about this part →
Hydraulic cone crusher on a steel support stand

Complete units

Complete Hydraulic Cone Crushers

Multi-cylinder and single-cylinder cone crusher units can be quoted with selected spares and documentation. Configuration and support scope are confirmed per project.

Duty-based selection Configured to order Spares package
Explore cone crusher units
Enquire about this part →
Jaw crusher unit

Complete units

Complete Jaw Crushers

Jaw crusher equipment for primary crushing applications. Confirm the feed, required throughput, drive, accessories and support included in the project quotation.

Jaw units Primary crushing Support by agreement
Explore jaw crusher units
Enquire about this part →

Cross-reference

Machines and part numbers we cover

If your model is not listed, send it anyway — the table below is the common range, not the limit of what we can source.

Model names are identification references only. Exact part number, machine serial number and configuration must be checked before supply.

Compatibility across the most common Australian crushing equipment
Machine familyModelsParts typically supplied
Metso Nordberg HPHP100, HP200, HP300, HP400, HP500, HP700, HP800Mantle, bowl liner, torch ring, eccentric, bronze bushes, socket liner, main shaft
Metso Nordberg GPGP100, GP200, GP300, GP500, GP550Mantle, bowl liner, main shaft, eccentric, countershaft, piston
Metso Nordberg MPMP800, MP1000, MP1250Mantle, bowl liner, socket liner, eccentric, main shaft
Metso Symons3′, 4′, 4¼′, 5½′, 7′Bowl liner, mantle, socket liner, bronze components, gear set
Sandvik CH / CSCH420, CH430, CH440, CH660, CH870 / CS420, CS430, CS440, CS660Mantle, concave, spider cap, arm guard, eccentric, bronze bushes
Sandvik H / SH2800, H3800, H4800, H6800, H7800 / S2800, S3800, S6800Mantle, concave, dust seal ring, step plate, thrust washer
Metso C-Series jawC80, C96, C100, C106, C110, C120, C130, C140, C145, C160, C200Fixed jaw, swing jaw, cheek plate, toggle plate, seat, jaw stock
Sandvik CJ / QJCJ211, CJ409, CJ411, CJ412, CJ612, CJ615 / QJ241, QJ341Fixed jaw, swing jaw, cheek plate, toggle plate, tension rod

Ordering

The four things that speed up a quote

Provide these details so identification, availability and price can be reviewed.

STEP 01

Crusher model

Metso HP300, Sandvik CH430, Metso C140 — or the machine serial number.

STEP 02

Part number

The OEM reference is ideal. A photograph of the worn part works too.

STEP 03

Material grade

If you have a preference or a site standard. Otherwise we will recommend one.

STEP 04

Quantity

One-off, or the full set for a shutdown. Specify whether you need individual parts or a matched set.

Send it all to chrisyumachineparts@gmail.com or call 0405 202 301.

Can’t find the part you need?

Send the machine model and a part number, photo or drawing. We will confirm whether we can supply it, and what it will cost, after review of the supplied information.
