Mantles
Moving wear liners fitted over the crushing head. Select the profile and alloy for the confirmed machine, chamber and feed.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Cone crushers
The wear parts that decide your cost per tonne
The mantle is the moving wear surface and the bowl liner or concave is the stationary wear surface. Together they form the crushing chamber. Correct profile selection depends on the crusher model, feed grading, setting and required product.
We supply wear and mechanical parts for selected cone crusher models. Material grade, dimensions and inspection documentation are agreed for the quoted item and operating duty.
- Matched mantle and bowl liner sets to preserve chamber profile
- Mn13Cr2, Mn18Cr2, Mn22Cr2 and TiC composite grades
- Bronze dimensions and running clearances checked against the agreed reference
- Fasteners and backing reviewed for the specific liner system
Aftermarket partsMetso & Sandvik
Component range
Parts we supply for cone crushers
Nine component families covering the wear surfaces, the eccentric group and the structural castings.
Bowl Liners & Concaves
Stationary chamber liners paired with the correct mantle profile. Metso and Sandvik references are checked for the exact part and configuration.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry

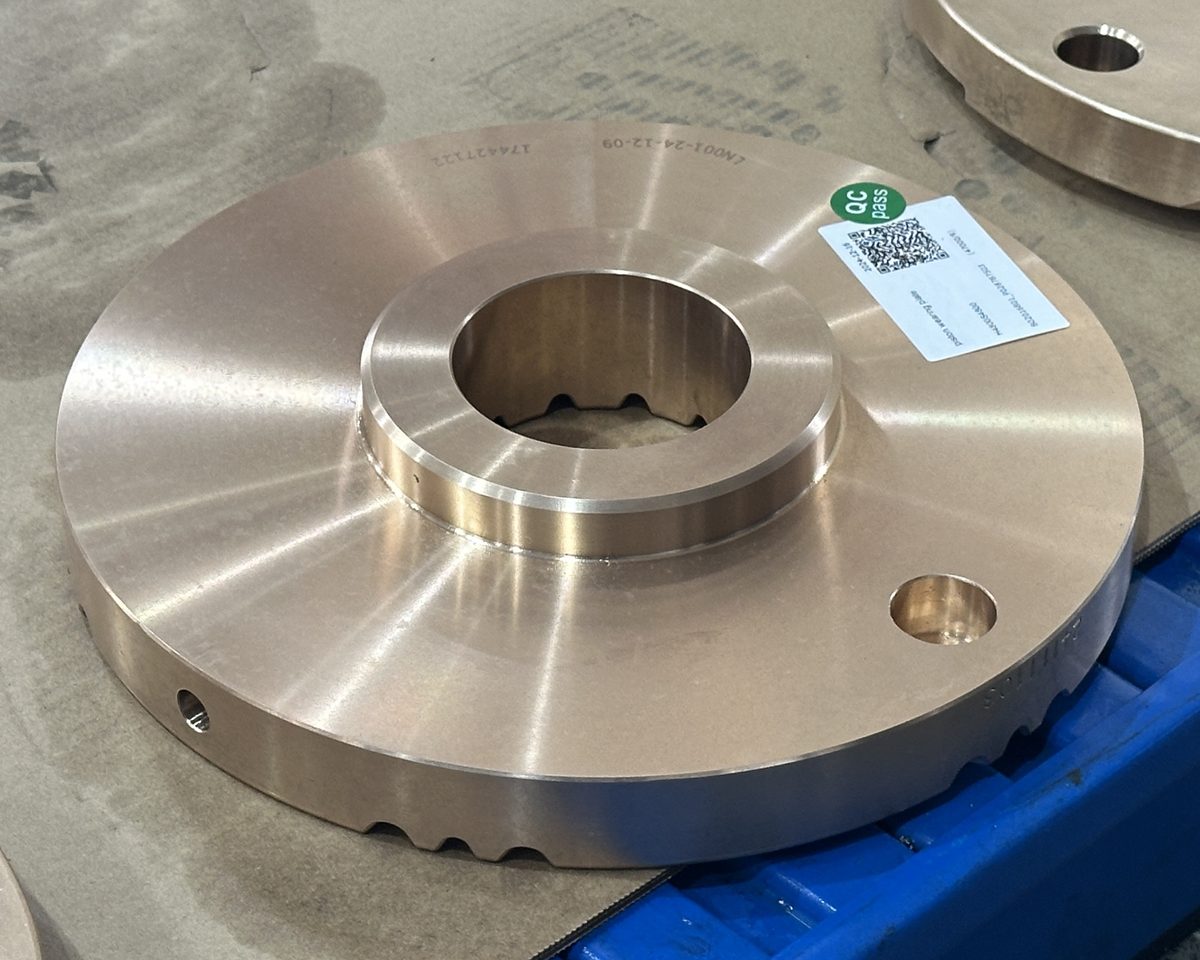

Bronze Bushes
Bronze bushes for applicable eccentric, head or countershaft positions. Alloy, running clearance and lubrication features are drawing-specific.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Eccentric Assemblies
Eccentric components create the head gyration in applicable designs. Gear, bush, stroke and assembly scope must match the machine reference.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Head & Main Shaft Assemblies
Head and shaft components for selected designs. Construction and supply scope differ between machine families and must be confirmed by part number.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Bevel & Pinion Gear Sets
Matched drive gear components. Tooth geometry, mounting, backlash and contact requirements are confirmed for the specified crusher.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Thrust & Bearing Components
Thrust plates and related bearing components for applicable crusher designs. Material, oil grooves and working clearances are part-specific.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Frames & Adjustment Rings
Structural and threaded ring components supplied to the confirmed machine reference and agreed machining scope.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Socket Support Components
Machined socket support components for applicable cone crusher designs. Confirm the part number and mating head and bearing arrangement.
- IdentificationPart number / drawing
- SupplyConfirmed on enquiry
Compatibility
Crusher families we cover
Model families below are enquiry references. Supply and fitment are confirmed for the specific part number and machine configuration; inclusion does not mean every part is stocked.
Model names are identification references only. Exact part number, machine serial number and configuration must be checked before supply.
| Machine family | Models | Parts typically supplied |
|---|---|---|
| Metso Nordberg HP | HP100 – HP800 | Mantle, bowl liner, torch ring, feed cone, eccentric, bronze set |
| Metso Nordberg GP | GP100 – GP550 | Mantle, bowl liner, main shaft, eccentric, piston, countershaft |
| Metso Nordberg MP | MP800 / MP1000 / MP1250 | Mantle, bowl liner, socket liner, eccentric, main shaft |
| Metso Symons | 3′ – 7′ standard & short head | Bowl liner, mantle, socket liner, gear set, bronze components |
| Sandvik CH / CS | CH420 – CH870 / CS420 – CS660 | Mantle, concave, spider cap, arm guard, eccentric, bushes |
| Sandvik H / S | H2800 – H7800 / S2800 – S6800 | Mantle, concave, dust seal ring, step plate, thrust washer |
| Terex / Cedarapids | MVP, TC and RC series | Mantle, bowl liner, bronze components, mechanical spares |
Material selection
Choose the grade against the duty, not the price list
Manganese content alone does not determine performance. Carbon and alloy content, heat treatment, chamber profile and operating duty also affect wear and toughness.
Mn13Cr2
Impact resistance
- Nominal 13% manganese family; suitability depends on alloy and heat treatment
- Acceptance hardness: agreed specification and batch test
- Review impact duty; tramp metal must be controlled, not accepted as normal feed
- Surface hardening depends on service stress and deformation
Mn18Cr2
All-round standard
- Nominal 18% manganese family for application review
- Acceptance hardness: agreed specification and batch test
- Balanced toughness and abrasion resistance
- Surface hardening depends on service stress and deformation
Mn22Cr2
Abrasion resistance
- Nominal 22% manganese family; carbon must be separately specified
- Acceptance hardness: agreed specification and batch test
- Suits hard-rock quarry and iron ore secondary crushing
- Surface hardening depends on service stress and deformation
TiC Composite
Extreme duty
- Titanium-carbide reinforcement in a specified matrix
- Wear-life improvement must be established by a comparable site trial
- Reinforcement layout and matrix must suit the duty
- Compare installed cost and measured tonnes processed
Product photographs
Cone crusher component examples
Examples from the supplied component library. Click any image to view it larger.
Questions
Cone crusher parts, answered
The questions our customers ask most often before ordering.
Send the model, serial number, chamber configuration and OEM part numbers where available. Confirm the mantle and stationary liner profiles as a compatible pair. Follow the equipment instructions for wear limits and replacement.
Different mantle and concave grades may be appropriate in some applications. Their wear rates depend on the chamber and duty, so grade combinations should be reviewed with the supplier and against operating history rather than chosen by a universal rule.
OEM-compatible means the part is manufactured to match the dimensional and material specification of the original, but it is not manufactured or supplied by the original equipment manufacturer. We are not affiliated with Metso, Sandvik or Terex. All OEM part numbers are used for identification and cross-reference only.
Wear life depends on feed size, abrasiveness, chamber profile, crusher settings, throughput and operating practice. We review these conditions before recommending a manganese grade or composite option; no fixed service-life claim applies across different sites.
Bolts, fastening parts and backing compound can be reviewed with the liner enquiry. Backing is required only where specified for the crusher and liner design; some systems are backing-free.
Send us the crusher model and we will quote the set
Tell us the machine, the duty and how many you are running. We will come back with grades, pricing, lead time and freight.
